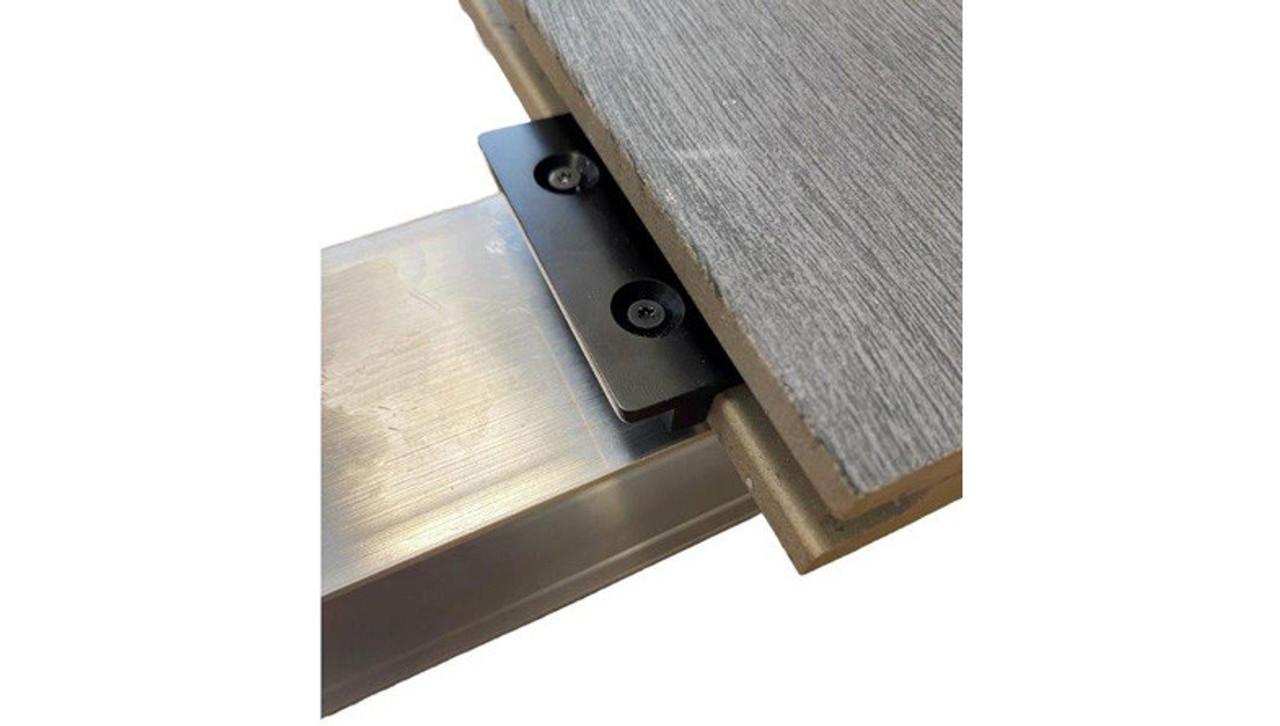

Introducing the W Clip, a game-changing hidden fixing clip for CDeck and Exadeck. Made from electrocoated aluminium, this innovative clip offers a Class A Fire Class Rating, making it the perfect choice for our Fire Rated non-combustible decking system.
W Clip 30 and W Clip 60- Hidden fixing for fitting deckboards to aluminium or composite joists
Before installation, it's crucial to drill a pilot hole of 3mm diameter into the support rail using the provided red jig and hardened steel drill bit. With a sleek black color, the W Clip is designed to provide a hidden fixing to deckboards with a central side milling profile.
It comes in two lengths, 60mm or 30mm, and has a width of 5mm at the underside, ensuring a precise 5-6mm gap between deckboards.
The W Clip comes with fixing screws included and attached to the clips, making installation faster and easier. Its Class A rating and aluminum construction make it ideal for non-combustible decking projects.
This bespoke and unique clip has been meticulously developed by Wallbarn to complement the Fire Deck CDeck and Exadeck decking and substructure system.
Featuring horizontal wings and a "chock" box detail, the W Clip ensures the clip stays in place during installation, minimizing waste and streamlining the process. The included black stainless steel screws are part-inserted into the screw chambers to prevent loss and save time. For WPC composite joists, alternative screws can be provided upon request.
Each bag of W Clips includes a red clip that acts as a jig for pre-drilling pilot holes, ensuring precise and efficient installation. Take your decking to the next level with the reliable and versatile W Clip by Wallbarn.
Sold by the pack of 100 (100 clips + Red jig)
Key advantages.
- Class A Fire Class Rating
- Designed to work with CDeck and Exadeck A1 fire rated decking boards.
- Bespoke and unique design
- Ideal for Fire Rated Decking Systems
- Designed to fit boards with central side milling profiles
- Screws attached to clips
- Jig for pre-drilling pilot holes supplied with clips
- Always drill a 3mm diameter pilot hole with a hardened steel drill bit into the rail
- Provides 5-6mm gap between deckboards
- Sold by the pack of 100 (100 clips + Red jig)
IMPORTANT: Always drill a pilot hole of 3mm diameter using the red jig with a hardened steel drill bit into the support rail before attempting to install the W Clips.
