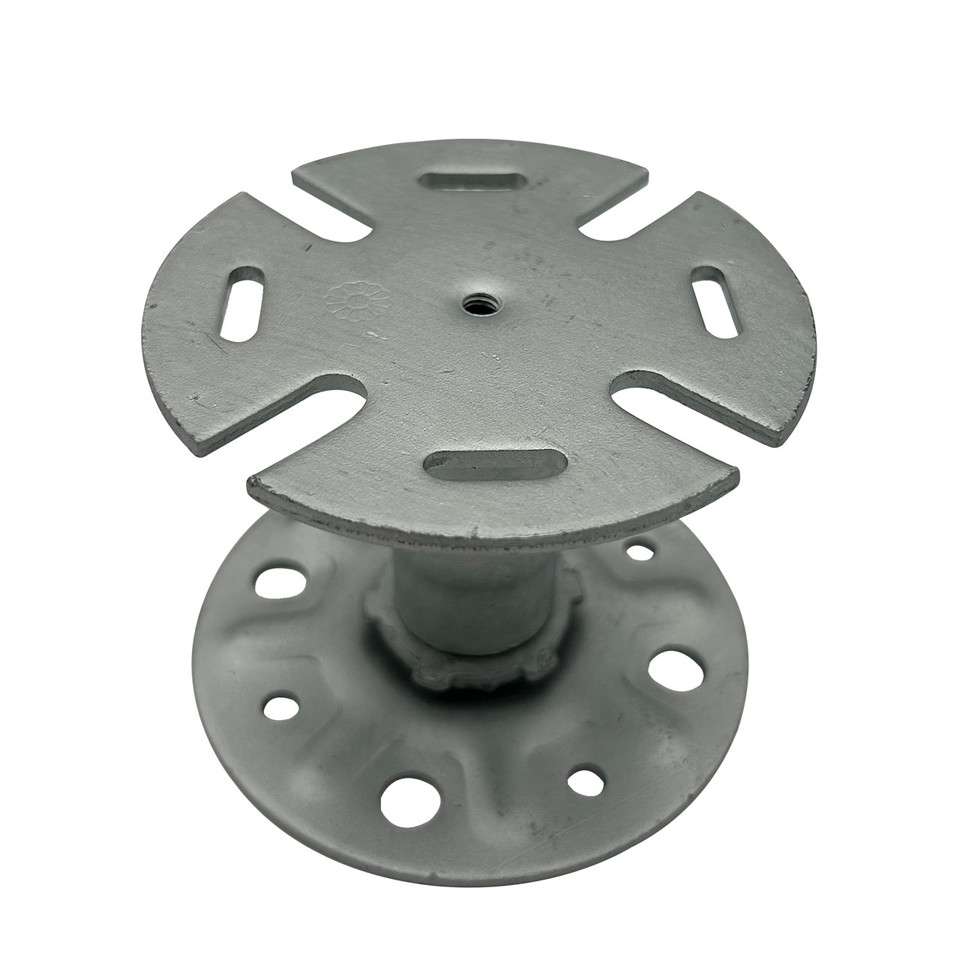

Wallbarn Fire Rated MetalPad - EX (flat head)

Wallbarn Fire Rated MetalPad: EX (Flat Head): Class A1 Adjustable Pedestal for Paving & Decking

The Wallbarn Fire Rated MetalPad: EX (Flat Head) is a Class A1, fully non-combustible pedestal, designed for suspended paving and decking systems on high-rise balconies, terraces, and flat roofs. Built from mild steel with a Zintec 200 protective coating, this zero-plastic, zero-rubber pedestal provides unmatched fire resistance, durability, and load-bearing capacity for exterior installations.

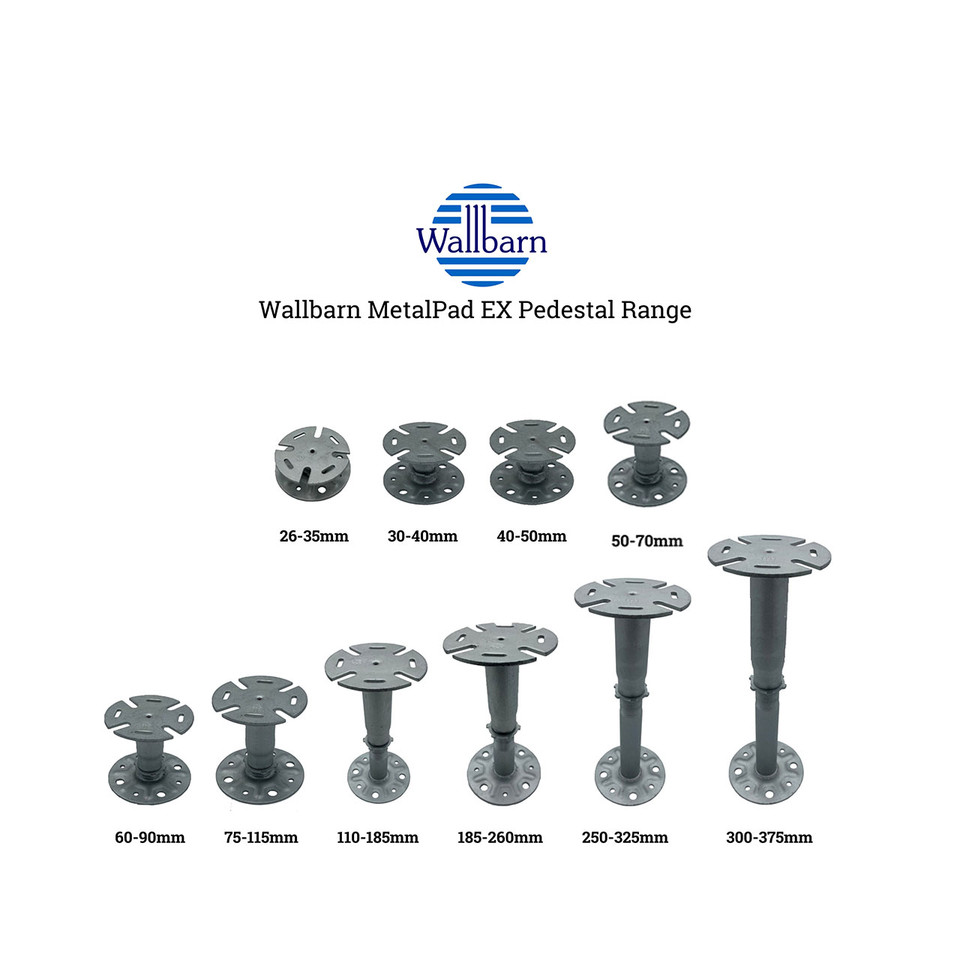

Offering height adjustability from 26mm to 675mm, the MetalPad EX pedestals allow for precise millimetre-level adjustments, even with the paving slabs or decking substructure in place. With a weight tolerance exceeding 2,000kg per unit, these pedestals ensure exceptional stability for Class A-rated paving and decking systems.

Key Benefits of Wallbarn Fire Rated MetalPad: EX (Flat Head)

• Class A1 Fire-Rated Pedestal: Fully compliant with BS EN 13501-1:2018 and EC Decision 94/611/EC, making it ideal for fire-sensitive exterior applications.

• Zero Plastic, Zero Rubber: Constructed entirely from non-combustible mild steel for maximum fire safety.

• Fully Adjustable Height: Ranges from 26mm to 675mm, with precise millimetre-level adjustments even after installation.

• Superior Load-Bearing Capacity: Supports over 3,000kg per unit, ensuring high strength and structural integrity.

• Corrosion-Resistant Zintec 200 Coating: Protects against white rust formation and excels in Neutral Salt Spray Testing (NSST) and Cyclic Corrosion Testing (CCT).

• Compatible with Paving & Decking Systems: Supports both paving slabs with aluminium positioning lugs and decking substructures using Wallbarn Aluminium Rails & Bearers.

• Secure & Easy Installation: Rails and bearers can be fixed to the pedestal by hand using wing nuts & bolts.

• Circular Baseplate with Optional Spreader Plates: 100mm diameter base provides a stable foundation, with optional spreader plates for additional weight distribution.

Why Choose Wallbarn MetalPad: EX (Flat Head)?

• Meets Class A1 Fire Regulations: Fully compliant with BS EN 13501-1:2018 for high-rise applications.

• Adjustable Even After Installation: Modify pedestal height without removing slabs or decking rails.

• Unmatched Strength & Durability: Supports over 3,000kg per unit, making it suitable for heavy-duty applications.

• Corrosion-Resistant for Long-Term Performance: Zintec 200 coating protects against oxidation and rust.

• Versatile Paving & Decking Compatibility: Supports both paving slabs and aluminium decking substructures.

For fire-rated decking solutions, explore Exadeck Ceramic Decking and CDeck Fibre Cement Decking.
